JAX-WS Tutorial

In just previous  chapter we  discussed about the Web service support  in J2EE.There  we discussed about JAX-WS and JAX-RS. This JAX-WS Tutorial gives an overview about the JAX-WS specification .Also implementation of  JAX-WS web services is explained with suitable example.

An overview to JAX-WS

JAX-WS is the Java API for XML Web services.It provides support for SOAP(Simple Object Access protocol) based web services.

Features of JAX-WS

  • Requests and responses are transmitted as SOAP messages(XML files) over HTTP
  • Even though SOAP structure is complex , developer   need not bother about the complexity in messaging. The JAX-WS  run time system manages  all the parsing related stuffs.
  • Since JAX-WS uses the W3C defined technologies , a SOAP web service client can access a SOAP web service that is running in a non java platform.
  • A machine readable  WSDL (Web Service Description Language)  file  which describes all the  operations about a service can be present in case of SOAP web services
  • Annotations can be used with JAX-WS to simplify the development

JAX-WS implementations

There are several implementations for JAX-WS. Some of them are :

JAX-WS  Example

The Software and Tools required are :

1)JDK 1.6

2)Eclipse Indigo

3)JBoss AS 7.0

4)SOAPUI Community Edition

Steps in creating a JAX-WS web service .

Step 1) Download and install JDK if it is not preinstalled.In this example  we are using  JDK 1.6

Step2)Download and extract eclipse Indigo.Download Link

Step 3)Download and extract JBoss AS 7.0.Download Link

Step 4)Download and install SoapUI.Download Link

Step 5)Open eclipse in a suitable workspace and create a dynamic web project

1

Step6)Give a suitable name to the project and press Next

2

Step 7)Press Finish

3

Step 8)In the server console , right click and create a new server instance

4

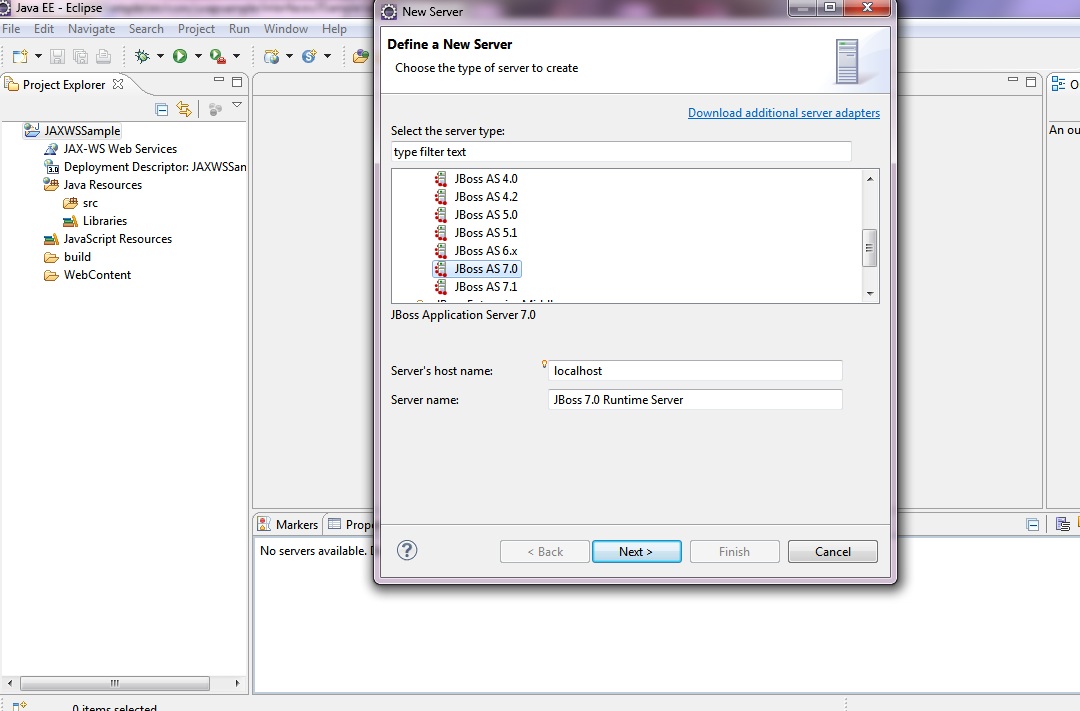

Step 9) Choose the server

5

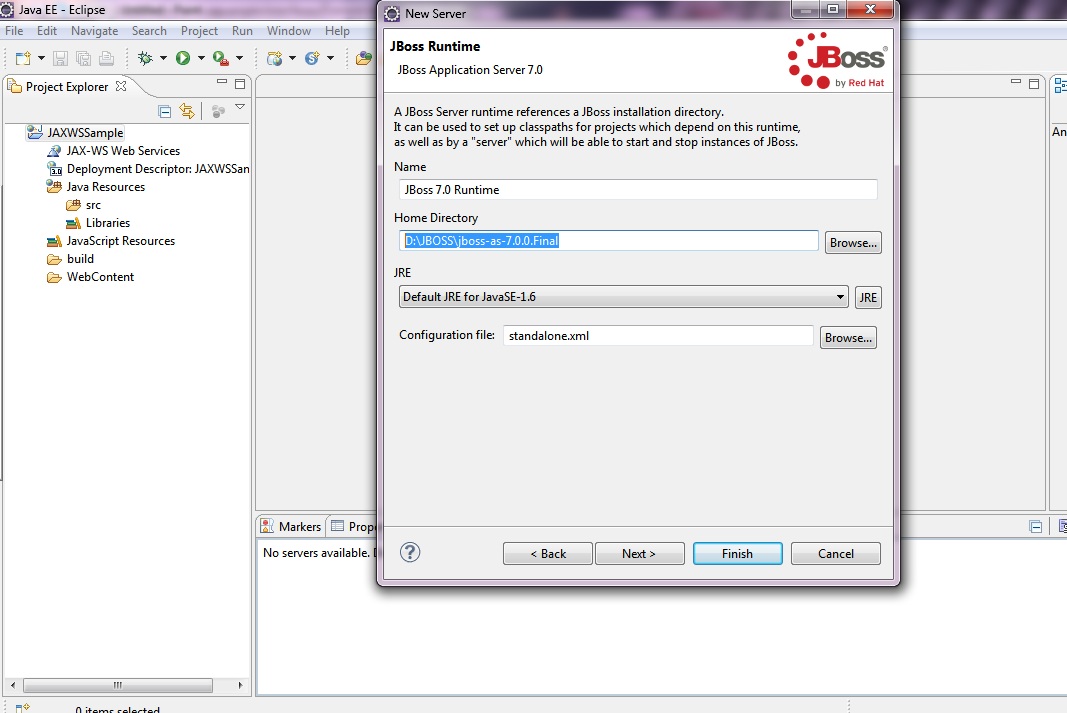

Step 10)Browse the JBoss server location

6

Step 11)Add the created project to server

7

Step 12)Now let us create two packages in src folder of the newly created project.One package for the interfaces and other for concrete implementations.In this case we are creating thepackages  com.soapsample.interfaces and com.soapsample.services

Step 13)Download the JAX-WS RI implementation and put the jar files in the lib folder to the \WebContent\WEB-INF\lib of the created project.In this example we usedJAX-RS RI 2.0 . JAX-WS RI can be downloaded from the Metro project page

Step 14)Create the interface for our web service. Here we are developing a web service which gives a string message as output.So the interface :

ISampleService.java

Step 15)Create a concrete implementation of the above interface

Step 16)Create a sun-jaxws.xml in \WebContent\WEB-INF of our project

Step 17)Add the following entries to the  web.xml  inside the  webapps tag.

18)Build the project and publish it to server.Then start the server.Once the application is started  the message   ‘Deployed “JAXWSSample.war ‘ would be displayed in the console

19)Now open any browser  and go to the url :  http://localhost:8080/JAXWSSample/sampleservice

8

The WSDL details would be displayed

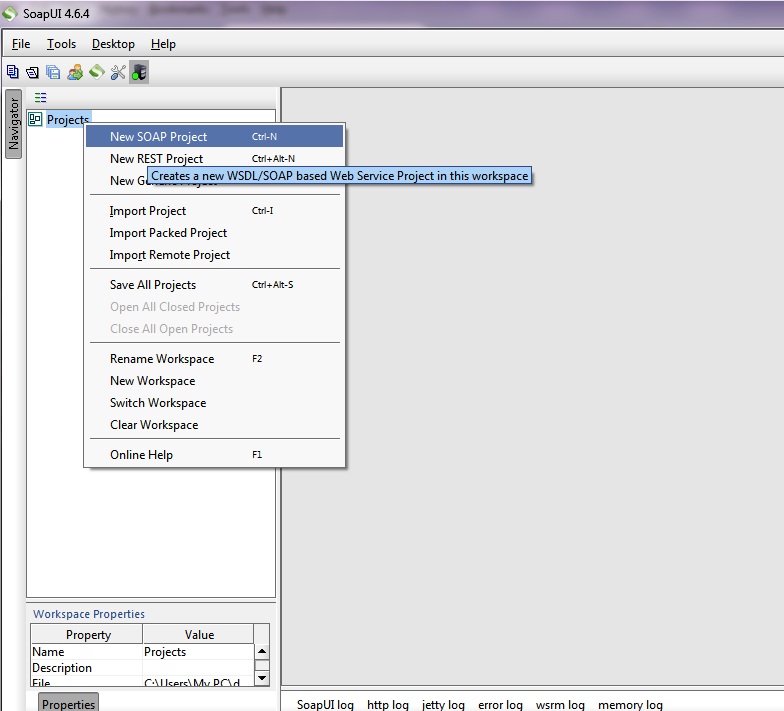

20)Now open SoapUI and right click on the projects option

9

21)Give a project name and specify the WSDL value and press ‘OK’ button.

10

22)Now the following screen would be displayed.

11

23)Expand the getMessage tree  and double click on the request 1.

12

24)Run the request 1 by clicking on the Run option.Then the output would be displayed

13

So we got the output of JAX-WS based web service using SoapUI.

Now let us create a client  for the above deployed web service.

25)Create a new Dynamic web project .Let it be JAX-WSClient in this case .Right click on the project .Then navigate to New–>Other–>Web service Client

14

26)Press Next and  then browse .Now give the WSDL path

15

27)Now press OK.In the next screen , drag the slider down to ‘develop’ level

1628)Now press Finish.Java files would be created in the JAX-WSClient project.

29)Now create a main class in a suitable package of newly created  client project.

The SampleServiceServiceLocator belongs to the classes generated in the above step.

30) Now run the main.The string output would be displayed in the console.

Message from Service :This is a message from SOAP Web Service
